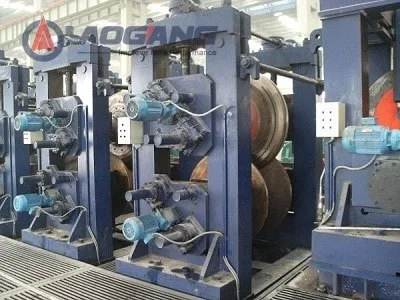

ERW508 PIPE MAKING MACHINE (1)

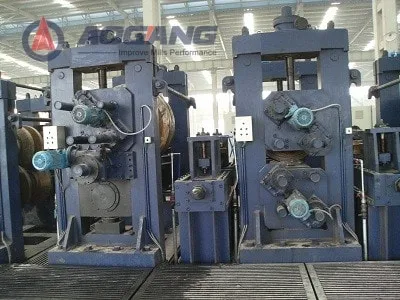

ERW508 PIPE MAKING MACHINE (5)

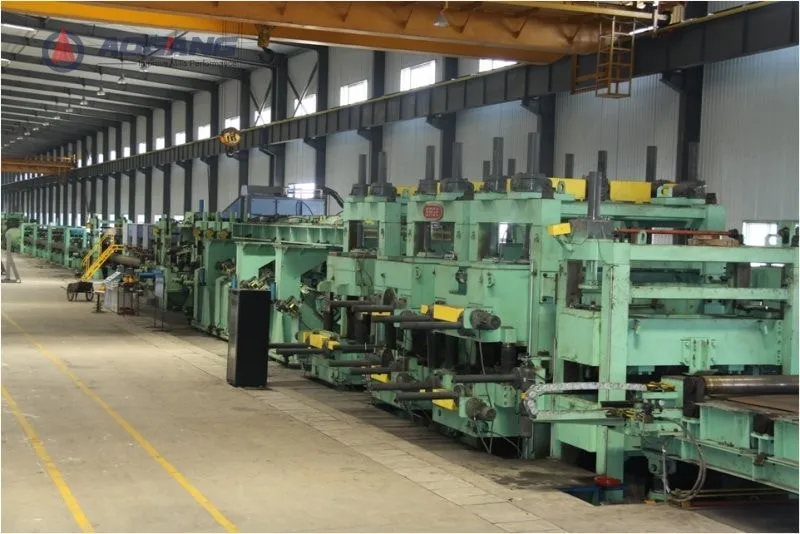

ERW508 PIPE MAKING MACHINE (2)
ERW508 PIPE MAKING MACHINE (3)
ERW508 PIPE MAKING MACHINE (1)
ERW508 PIPE MAKING MACHINE (5)
ERW508 PIPE MAKING MACHINE (2)
ERW508 PIPE MAKING MACHINE (3)

508 Tube mill/Pipe mill

ERW508 tube mill/pipe mill/welded pipe production/pipe making machine is used to produce steel pipes of 325mm-508mm in OD and 6.0mm-18.0mm in wall thickness, as well as corresponding square and rectangular pipe.
Inquire
Application
Advantage
Technical parameter

Application

Construction, automotive, general mechanical tubing, oil and gas, furniture, agriculture, chemistry, nuclear, etc.

Advantage

  • FFforming process save roller up to 60%
  • Automatic adjustment, save roller changing time
  • Homogeneous deformationof each stand, improve pipe quality
  • Low defectiveproduct rate
  • Siemens , Allen-Bradley motor as option

Technical parameter

Finished product Round Pipe Φ325mm-φ508mm
Thickness: 6.0mm-18.0mmThickness: 6.0mm-12.7mm(material: X70, N80)
Square & rectangle tube 140mm×140mm-255mm×255mm

Thickness:6.0mm-16.0mm
Length 5m-12m
Length Tolerance ±3.0mm
Production Speed 10-30m/min
Raw Material Coil material ● HR/CR carbon steel
● High-Strength Low -Alloy- Steel(HSLA)
● Advanced High-Strength Steels (AHSS)
Width 1020mm-1600mm

Thickness: 6.0mm-18.0mm
Coil ID Φ580-φ630mm
Coil OD Φ900～φ2000mm
Coil Weight 25.0Tons
